Metal building materials Q195 Low Carbon Steel Galvanized steel trench drain grates
Description:
1)Steel grating raw material :Low carbon steel, stainless steel, aluminum alloy

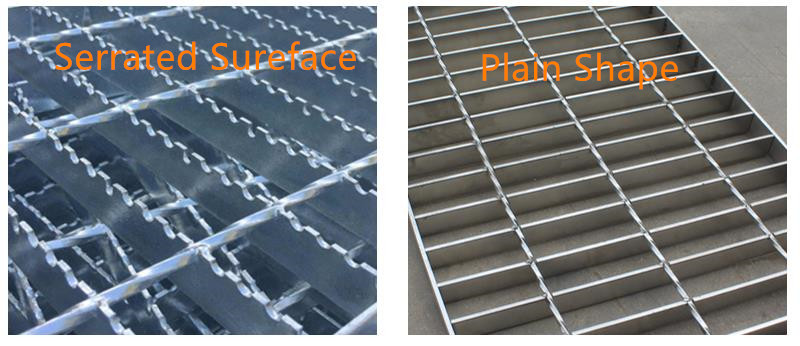

2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3)Cross bars shape: square bars, twisted square bars,round bars
4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers' requirement.
Reference:
| Material | 1.Carbon Steel Q235 2.Stainless Steel 304 / 316 |
| Type | Press lokced / Flat bar / Serrated bar / I Bar |
| Bearing Bar Size | the specification of "I-section" is 25 x 5 x 3, 32 x 5 , 40 x 5 , |
| Bearing Bar Pitch | 60mm are recommended, America standard is available |
| Cross Bar Pitch | from18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available |
| Specification | Size of bearing flat steel: 25x3mm / the center space: , 45mm, 75mm, 100mm, 150mm, |
| Surface Treatment | Untreated / Painting / Hot Dip Galvanizing |
| Steel Standard | China GB700-88 / America ASTM (A36) / Britain ASTM (A36) |
| HDG Standard | China GB/T13912-92 / America ASTM (A123) / Britain BS729 |
| Quality Standard | China YB/T4001-1998 America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987 Australia AS1657-1992 |
Details
Light Duty: Light Duty Carbon Riveted Grating includes bar sizes of 3/4” x 1/8” up to 2-1/2” x 3/16”. It is primarily used for pedestrian traffic and for light, tired, rolling traffic such as carts, dollies, and hand trucks.
Heavy Duty: Heavy Duty Carbon Riveted Grating includes bar sizes of 2-1/2” x 3/16” up to 5” x 3/8”. It is primarily used where heavy vehicular traffic is utilized including industrial plants utilizing fork lift trucks, highways, and bridges.
Products Pictures

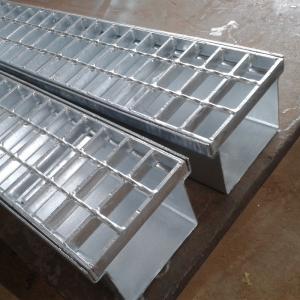

The trench cover is a trench (well) cover made of steel grating. There are a variety of models to choose from to suit different span loads and requirements.
It is widely used in different places such as municipal roads, garden facilities, residential quarters, schools, stadiums, etc. According to different applications, the surface of trench (well) cover plates of different specifications and models can be hot-dip galvanized, cold-galvanized (electroplated) or untreated.
The trench cover is mainly used in some factories and high-end communities. This is mainly because the cement trench cover is often crushed and the road surface is also damaged. Therefore, the trench cover plate made of steel grating is suitable for different loads.
Application
Grating is widely used in steel structure walkway, foot pedal, drain cover, commercial and industrial flooring.
It can take mirror to your floor. This sort of floor appears timeless and classy for you.
